Introduction: Why Your Equipment Is at Risk

Imagine a multi-million dollar data center going offline, a production line’s control systems frying, or critical medical equipment failing—all in a microsecond. This isn’t science fiction; it’s the real threat posed by electrical surges. While a direct lightning strike is the most dramatic cause, 80% of transient surges are generated internally by everyday operations like HVAC systems cycling or large machinery switching on and off. A Surge Protection Device (SPD) is your essential, cost-effective insurance against these unpredictable events, safeguarding not just hardware but the continuity of your entire operation. This guide will provide you with the knowledge to understand, select, and implement the right SPD solution.

1. What is a Surge & How Does an SPD Work?

An electrical surge, or transient overvoltage, is a short-duration spike in voltage significantly above the normal flow. Think of it as a tidal wave in your otherwise steady stream of electrical current. These spikes can degrade circuitry immediately or cumulatively over time.

Core Function: An SPD acts as a pressure-sensitive gatekeeper. Under normal voltage conditions, it presents a high impedance (an “open gate”) and is invisible to the system. When a surge voltage exceeds a specific threshold, the SPD activates within nanoseconds, creating a low-impedance path (a “wide-open gate”) to divert the harmful surge energy safely to the ground. Once the surge passes, it resets automatically, ready for the next event.

2. The Multi-Stage Defense Strategy: Coordinated SPD Protection

Effective protection follows the Lightning Protection Zone (LPZ) concept, creating layers of defense akin to a castle’s perimeter wall, main gate, and inner keep.

Type 1 / Class I SPDs: The first line of defense. Installed at the main service entrance, they are designed to discharge extremely high currents from direct or nearby lightning strikes (10/350 µs wave). They handle the brunt of the energy but let a “residual” surge pass through.

Type 2 / Class II SPDs: The secondary, crucial protection layer. Installed at sub-distribution boards (like floor or equipment room panels), they further limit the overvoltage to a safer level for sensitive equipment. This is the most common type for comprehensive facility protection.

Type 3 / Class III SPDs: The point-of-use, fine-protection layer. Installed very close to sensitive devices (e.g., PLCs, servers, medical devices), they provide the final voltage clamping. They are often used in conjunction with Type 2 SPDs.

3. Step-by-Step SPD Selection Guide

Choosing the right SPD is a systematic process. Follow this decision flow and key parameter checklist.

Selection Flowchart

Identify Location: Is it the Main Service Panel (requires Type 1 or 1+2), a Sub-Panel (Type 2), or a Point-of-Use (Type 3)?

Determine Power System: What is the voltage (e.g., 120/240V, 400V) and configuration (TN-S, TT, IT)? The SPD must be compatible.

Assess Risk & Criticality: Is the connected load critical (e.g., data center, ICU)? If yes, implement coordinated protection (Type 1+2+3).

Check Key Parameters: Match the SPD’s specs to your needs using the table below.

Verify Certification: Ensure the SPD is certified to relevant standards (IEC/EN 61643-11, UL 1449).

Critical Parameters Explained (Quick-Reference Table)

Parameter	Symbol	What It Means	Why It Matters
Maximum Continuous Operating Voltage	Uc	The max voltage the SPD can handle continuously without degrading.	Must be 10-20% above your local supply voltage to avoid nuisance tripping.
Voltage Protection Level	Up	The maximum voltage let-through after the SPD clamps the surge. Lower is better.	This is the voltage that reaches your equipment. Must be below your equipment’s withstand rating.
Nominal Discharge Current	In	The peak current (8/20 µs wave) the SPD can discharge repeatedly while maintaining performance.	Indicates durability and lifespan for common surge events. A key reliability metric.
Maximum Discharge Current	Imax	The absolute peak current (8/20 µs wave) the SPD can discharge once without catastrophic failure.	Represents the SPD’s “survival limit” for a very large, single event.

4. Installation & Maintenance Best Practices

Even the best SPD is ineffective if installed incorrectly.

The Golden Rule: Short and Straight Connections. Use wires as short as possible (<0.5m) and avoid looping. Long, coiled wires create inductive impedance that worsens let-through voltage (Up).

Robust Grounding is Non-Negotiable. The SPD’s efficiency depends on a low-impedance path to earth. The ground system resistance should ideally be ≤ 4 ohms.

Regular Inspection is Key. Most SPDs have a visual status indicator (green=OK, red=replace). Check them at least twice a year, and always after a major storm. Many modern SPDs also offer remote monitoring contacts.

Don’t Forget Signal Lines! Power lines are only one entry point. Surges can travel on data, telecom, and coaxial lines (e.g., Ethernet, CCTV feeds). Always use appropriate signal SPDs to protect these ports.

5. Industry-Specific Application Solutions

Industrial & Manufacturing: Protect PLC cabinets, motor drives (VFDs), and sensor networks. Focus on Type 2 protection at control panel inlets and Type 3 for sensitive I/O cards. High-EMC environments are common.

Renewable Energy Systems: Critical for solar PV and wind installations. DC-side SPDs are required for PV strings and combiner boxes. Both AC and DC SPDs must be rated for outdoor conditions and specific system voltages.

Commercial & Data Centers: Ensure uptime and protect capital investment. Implement coordinated protection from utility entrance to server rack PDU. Rack-mounted Type 3 SPDs are essential for final protection of IT equipment.

Smart Buildings & IoT: As buildings get smarter, the network of connected devices grows. Protect BMS controllers, lighting systems, security/access control panels, and EV charging stations.

Conclusion & Final Recommendation

Investing in a proper surge protection system is an investment in operational resilience, risk mitigation, and long-term cost savings. The price of a comprehensive SPD solution is typically a fraction of the cost of a single major equipment failure and its associated downtime.

Your Action Plan:

Conduct a Risk Audit: Walk through your facility and identify critical loads and potential surge entry points (both power and signal).

Plan for Coordinated Protection: Don’t rely on a single device. Design a layered defense (Type 1 > Type 2 > Type 3) tailored to your needs.

Consult the Standards and a Professional: Refer to IEC 62305 (Lightning Protection) and IEC 60364 (Electrical Installations). For complex systems, engage with a qualified electrical engineer or a trusted SPD solution provider.

By taking these steps, you move from being vulnerable to being proactive, ensuring your operations run smoothly no matter what surges come your way.

---

Disclaimer: This guide is for informational purposes. The design and installation of surge protection systems should be carried out by qualified professionals in accordance with all applicable local and national electrical codes and standards.

6. Partnering with Sunpeace for Total Surge Protection

When implementing a comprehensive surge protection strategy, partnering with an expert provider can streamline the process and ensure optimal results. Sunpeace stands out as a trusted partner capable of delivering true end-to-end surge protection solutions.

Sunpeace addresses the core challenges highlighted in this guide by offering:

A Complete Product Portfolio: From Type 1, 2, to 3 SPDs for AC power systems to specialized DC SPDs for solar PV applications and signal protectors for data lines, Sunpeace provides a full spectrum of devices to build a coordinated, multi-stage defense for any facility.

Application-Specific Expertise: Whether you are securing an industrial PLC system, a data center, a commercial building, or a renewable energy plant, Sunpeace’s engineering team can deliver tailored solutions that meet the unique demands and standards of your industry.

Quality and Compliance Assurance: All Sunpeace products are designed and tested in accordance with major international standards (such as IEC 61643), ensuring reliable performance, safety, and durability for critical protection.

Technical Support and Service: Beyond products, Sunpeace provides essential technical consultation, system design support, and guidance on proper installation and maintenance, helping you move from theory to a reliably protected installation.

Choosing Sunpeace means selecting a single-source provider committed to safeguarding your assets through high-quality products, deep technical knowledge, and a holistic approach to risk management.

Frequently Asked Questions About Surge Protection Devices (SPDs) Wiring Diagrams

Q: What is the difference between Type 1, Type 2, and Type 3 SPDs?

A: The differences among Type 1 SPD, Type 2 SPD, and Type 3 SPD depend on their installation position and the surge level they are designed to handle.

• Type 1 SPDs protect against direct lightning currents and are installed at the service entrance.
• Type 2 SPDs protect against switching surges and indirect lightning, typically installed in distribution boards.
• Type 3 SPDs provide equipment-level protection, installed close to sensitive loads.

Understanding these surge protection device types ensures a complete and effective multi-stage surge protection system.

Q: Do I need a whole house surge protector in addition to device-level SPDs?

A: Yes. A whole house surge protector installed at the main distribution panel protects the entire electrical system from large surges, while Type 3 SPDs at terminal devices provide fine-level protection. Combining whole house SPDs with local SPDs offers the best multi-stage surge protection.

Q: Can I install an SPD myself?

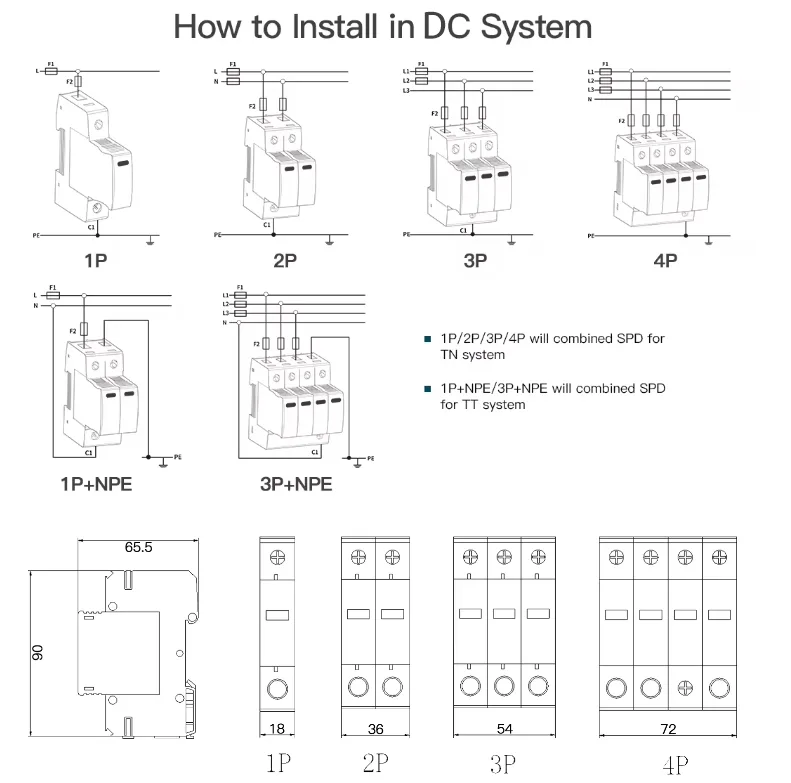

A: Basic installations of surge protection devices (SPDs) may be done by experienced users who strictly follow the correct SPD wiring diagram and safety procedures. However, for three-phase systems, solar/PV systems, or complex arrangements, it is strongly recommended to hire a qualified electrician.
