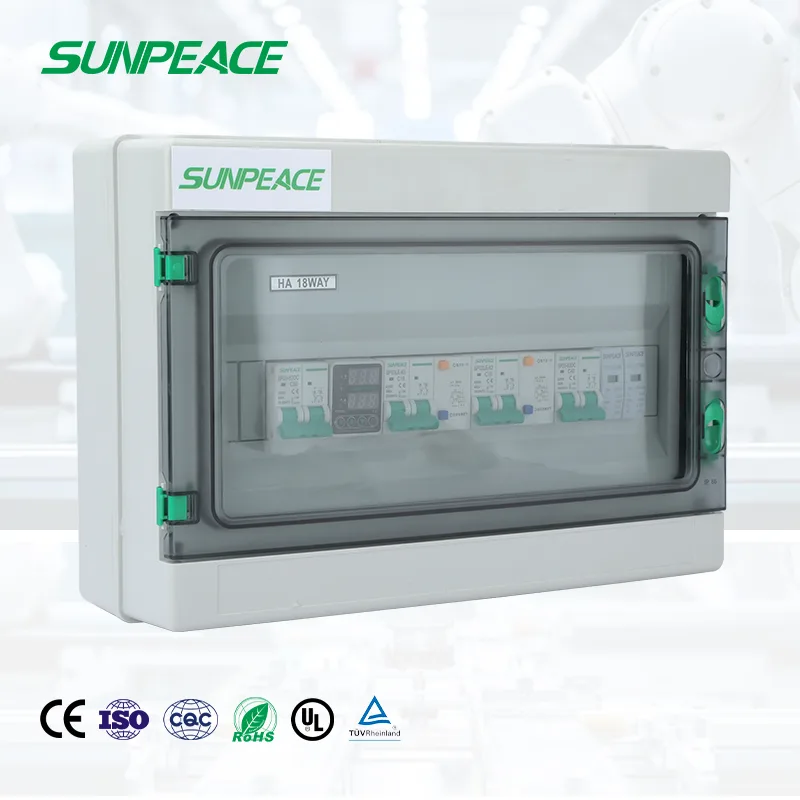

IP65 ABS Solar PV DC Combiner Box

Input：4 strings

Output：2 strings

Maximum Voltage：500v

Maximum Current Input：16A

Maximum Current Output：32A



Category：Combiner Box, Product

+86-183-6778-6789 simon@sunpeaces.com

Product Details

SOLAR BOX Application
Combiner Box provides a means of combining multiple source circuits from a PV array into a single DC output. Each source circuit is fused separately using a touch-safe fuse holder. The combiner box allows for fail-safe operation of the system in the unlikely event that a problem with a source circuit leads to abnormally high current. In addition, the combiner box provides a convenient means of accessing the DC portion of a PV system for routine maintenance and troubleshooting.

Include8 Pcs Fuse+ 2 PCS 2p 500v MCB+2 PCS 2p500v SPD +Distribution box+solar connector+Cable Gland+Wiring(Support customization）
Input4 strings
Output2 strings
Maximum Voltage500v
Maximum Current Input16A
Maximum Current Output32A
Material TypePC BODY ABS COVER
Degree of ProtectionIP65
Degree of Resistance to lmpactsIK10
Nominal discharge current20kA
Maximum discharge current40kA
Voltage protection level2.8KV
Poles2P
IP65 ABS Solar PV DC Combiner Box 1
IP65 ABS Solar PV DC Combiner Box 2
IP65 ABS Solar PV DC Combiner Box 3
IP65 ABS Solar PV DC Combiner Box 4
IP65 ABS Solar PV DC Combiner Box 5
IP65 ABS Solar PV DC Combiner Box 6
