An unexpected voltage spike or drop can destroy your expensive appliances in seconds. This practical guide will walk you through the correct installation of an over-under voltage protector—your first line of defense.

An Over-Under Voltage Protector is a crucial device that automatically cuts power when it detects voltage that is too high or too low, safeguarding your home’s electronics. Proper installation is key to ensuring it works as intended.

This guide covers the essential tools, step-by-step wiring instructions, and vital safety checks to correctly install your voltage protector.

▎Essential Tools and Safety Preparations

Required Tools & Materials:

• Voltage Protector Device
• Screwdrivers (Flat-head & Phillips)
• Wire Strippers
• Electrical Tester / Multimeter
• Insulated Tools

Critical Safety First Steps:

1. TOTAL POWER SHUTOFF: Before any work, turn off the main circuit breaker in your distribution board (fuse box). This is non-negotiable.
2. VERIFY POWER IS OFF: Use an electrical tester to confirm the terminals you will be working on are de-energized.
3. CHECK DEVICE RATINGS: Ensure the protector’s voltage and current ratings (e.g., 230V, 50Hz, 32A) match your home’s electrical system and expected load.

▎Step-by-Step Wiring Instructions

1. Choose the Correct Location:

• The protector is typically installed on the DIN rail inside your main distribution board.
• It should be placed after the main switch but before the individual circuit breakers.

2. Access the Wiring Terminals:

• Identify the Input (LINE) and Output (LOAD) terminals on the protector. They are clearly marked.
• Input connects to the power source (from the main switch).
• Output connects to the circuits you want to protect.

3. Connect the Wires:

• Source to Input: Connect the Live (L) and Neutral (N) wires from the main switch to the protector’s INPUT terminals.
• Output to Load: Connect the Live (L) and Neutral (N) wires from the protector’s OUTPUT terminals to the subsequent circuit breakers.
• Secure Grounding: Connect the Earth wire (PE) directly to the grounding bar in the distribution board. The protector itself does not usually break the earth connection.

4. Finalize the Installation:

• Double-check that all wire connections are tight and secure.
• Gently push any excess wire back into the panel to avoid pinching.
• Mount the protector securely onto the DIN rail.

▎Post-Installation Testing and Verification

1. Initial Power-Up:

• Restore power at the main switch.
• Observe the protector’s indicator lights. A green or blue light typically indicates normal voltage and that power is flowing to the circuits.

2. Functional Test (If Possible):

• Simulate an Over-Voltage: This often requires a variable transformer. Consult a professional if you are unsure.
• Simulate an Under-Voltage: Similarly, requires specialized equipment.
• During a test, the protector should cut power to the connected circuits. The indicator light may change color (e.g., to red) or turn off.
• After voltage normalizes, the device should automatically or manually restore power after its built-in delay.

▎Common Mistakes to Avoid

• Swapping Input and Output: This can permanently damage the device.
• Loose Wiring: Leads to overheating, voltage drops, and potential fire hazards.
• Skipping the Grounding: Compromises safety and can cause malfunction.
• Ignoring Load Rating: Do not connect a load that exceeds the protector’s current rating (e.g., 32A).

▎Frequently Asked Questions (FAQ)

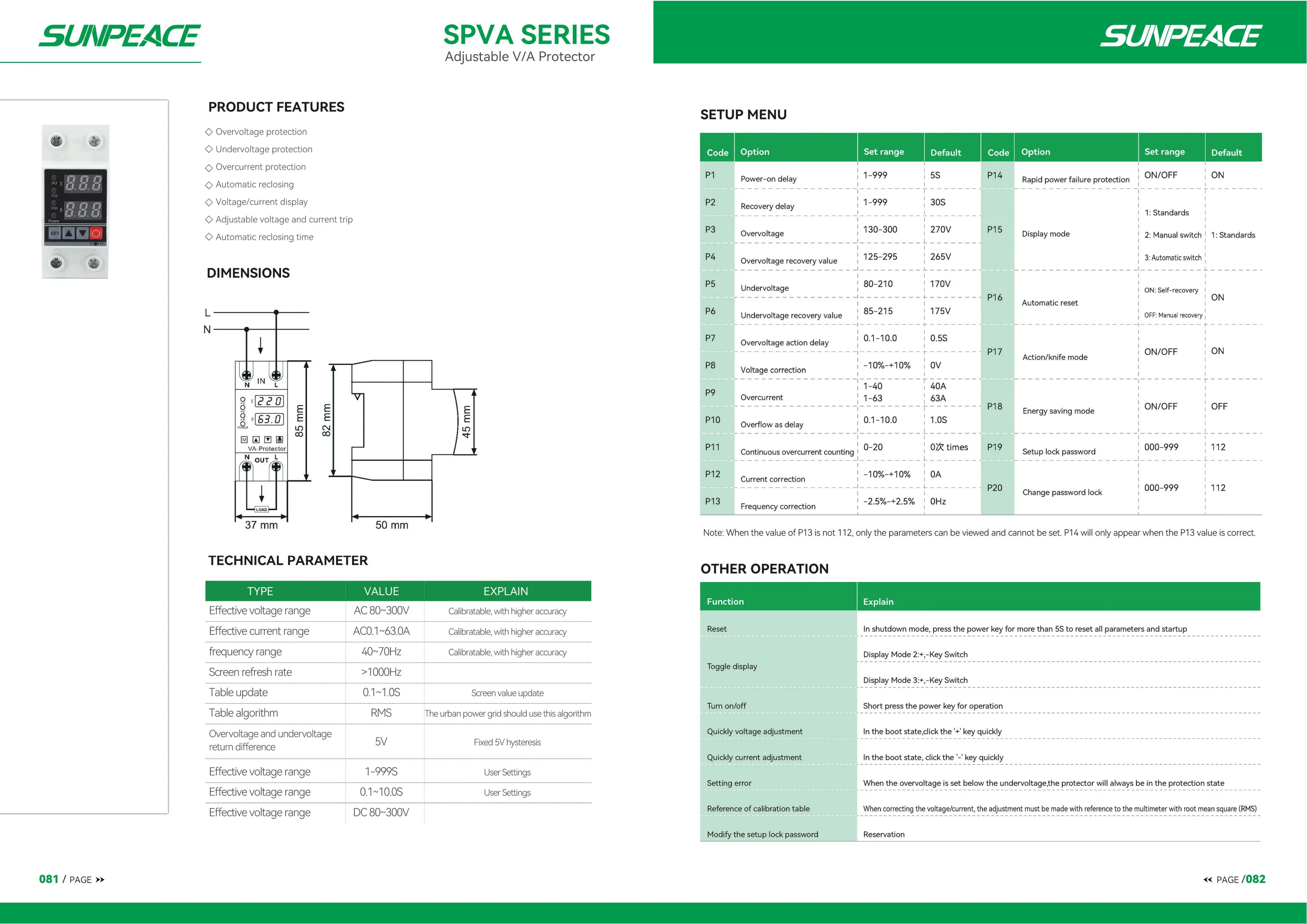

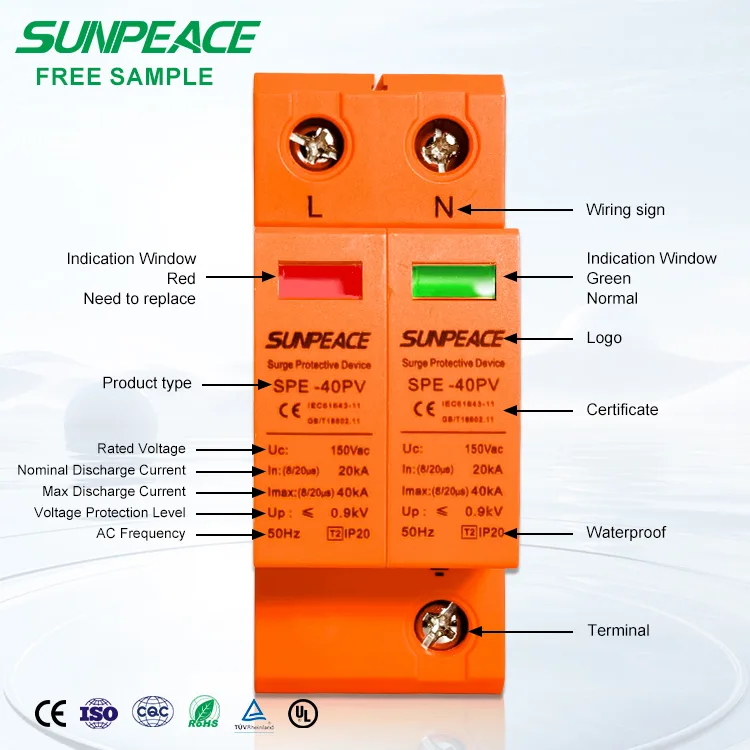

1. What is the difference between an Over-Under Voltage Protector and a Surge Protector?
A surge protector guards against instantaneous, high-voltage spikes (like from lightning). An over-under voltage protector guards against sustained high or low voltage that can last for seconds or minutes. They are complementary and not interchangeable.

2. If I already have circuit breakers, do I need a voltage protector?
Yes. Standard breakers protect against overcurrents (short-circuits and overloads). They offer little to no protection against sustained overvoltage or undervoltage conditions.

3. How can I tell if my voltage protector is working?
The status indicator light is the primary clue (e.g., Green = Normal, Red = Protection Mode). Some advanced models have a digital display showing the live voltage.

4. Why does my protector cut power frequently?

• Your local grid voltage may be genuinely unstable.
• The protection thresholds might be set too narrowly.
• The device itself could be faulty. Use a multimeter to check the actual voltage.

5. What is the typical lifespan of a voltage protector?
It can last for many years under normal conditions. However, if it experiences frequent severe voltage events or a direct lightning strike nearby, it should be inspected and potentially replaced.

▎Conclusion

Correctly installing an over-under voltage protector is a straightforward yet vital task to shield your appliances from damaging voltage fluctuations. By following these wiring steps and safety precautions, you can create a reliable barrier against a common cause of electronic equipment failure.

Important Disclaimer: Electrical work can be dangerous and is subject to local regulations. If you are not a confident and knowledgeable individual, it is highly recommended to hire a licensed electrician to perform this installation.
