DC to AC SSR Din Rail Three Phase DA Solid State Relay

Control voltage range:3-32VDC

Minimum control current：5mA

Maximum control current：15mA

Ensure on voltage：3.5VDA

Ensure the turn-off voltage：1.5VDA

Category：Product, Solid State Relay

+86-183-6778-6789 simon@sunpeaces.com

Product Details

Control voltage range3-32VDC
Minimum control current5mA
Maximum control current15mA
Ensure on voltage3.5VDA
Ensure the turn-off voltage1.5VDA
Output
Output voltage range24-480VAC
Maximum load curre10A25A40A60A80A100A120A
Peak resistance800VAC800VAC800VAC1200VAC1200VAC1200VAC1200VAC
Insulation resistance1000MQ/500VDC
Leakge current in 0FF state≤8mA rms≤8mA rms≤8mA rms≤2mA rms≤2mA rms≤2mA rms≤2mA rms
Saturation depressurization in On state≤1.5V
The on-off response is delayed≤10ms
size57.4L×44.8W×28H
weight100g
Voltage resistant insulation between input and output2500V rms
Voltage resistant insulation between inputand output and housing4000v rms
Ambient temperature-20℃-75℃
Installation modebolting
certificateCE
DC to AC SSR Din Rail Three Phase DA Solid State Relay 1
DC to AC SSR Din Rail Three Phase DA Solid State Relay 2
DC to AC SSR Din Rail Three Phase DA Solid State Relay 3
DC to AC SSR Din Rail Three Phase DA Solid State Relay 4
DC to AC SSR Din Rail Three Phase DA Solid State Relay 5
DC to AC SSR Din Rail Three Phase DA Solid State Relay 6
DC to AC SSR Din Rail Three Phase DA Solid State Relay 7

Inquiry

    Related Products

    AC to AC SSR Din Rail Single Phase AA Solid State Relay
    AC to AC SSR Din Rail Single Phase AA Solid State Relay
    DC to AC SSR Din Rail Three Phase DA Solid State Relay
    DC to AC SSR Din Rail Three Phase DA Solid State Relay

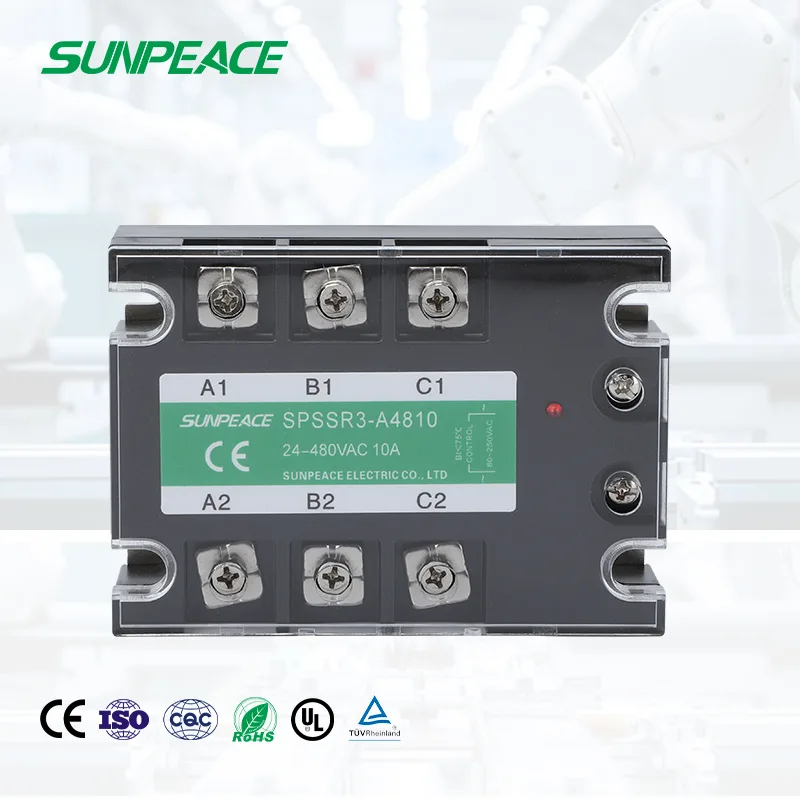

    AC to AC SSR Din Rail Three Phase AA Solid State Relay
