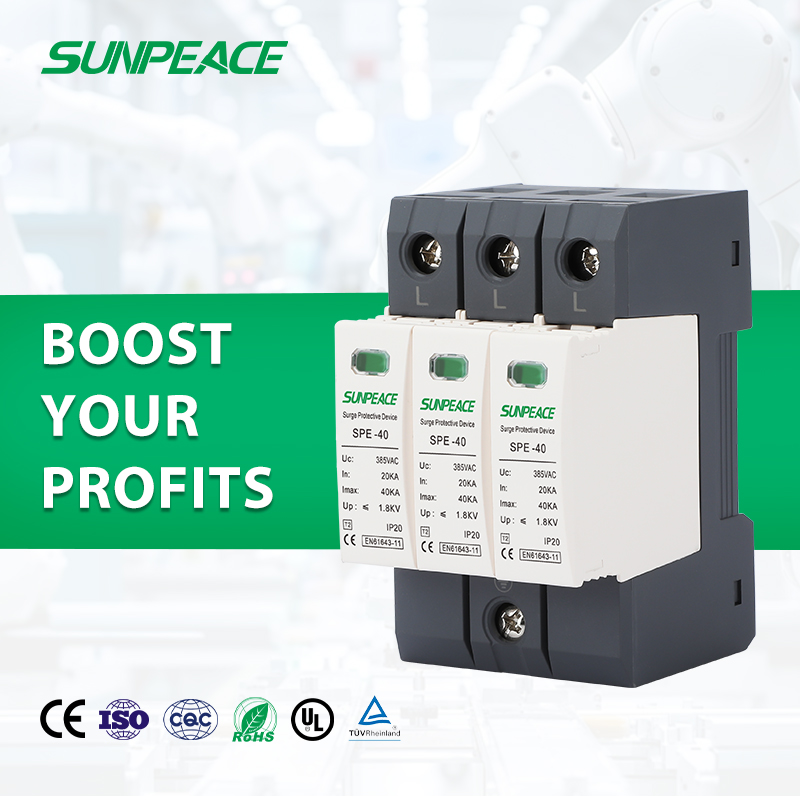

DC/AC Surge Protection Device

Product Name	Surge Protective Device
Type	DC/AC SPD
Pole No	1P/2P/3P/4P
Max.Continuous Operating Voltage (Uc):	500VDC/600VDC/800VDC/1000VDC/1200VDC/385VAC
Nominal Discharge Current (In):	20KA
Max. Discharge Current (Imax.):	40KA
Voltage Protection Level( Up):	≤3.5KV / ≤1.8KV

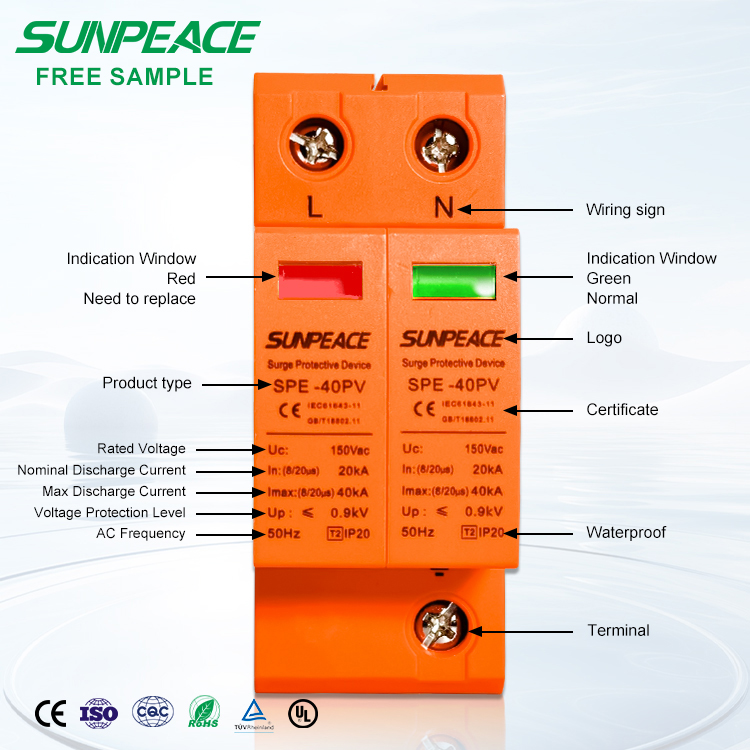

Indicate Deterioration:	Green: normal functionRed: functionless, immediate replacement required

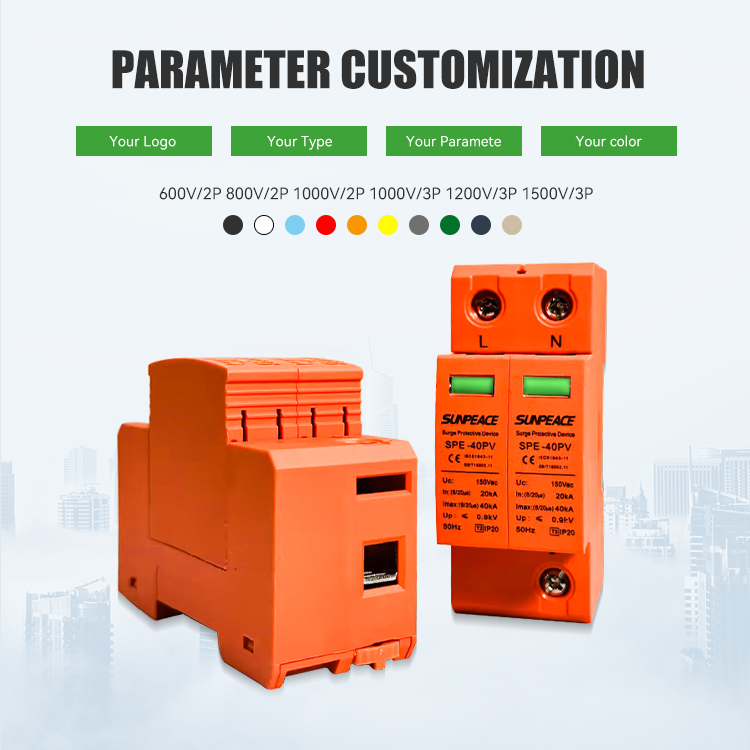

Color:	White , can make according to your requirements
Environmental Temperature:	-40℃-+85℃
Standard	GB18802.1 IEC61643-1

Product Description		Type1+2 Surge Ptotective Device
Maximum Continuous Operating Voltage	Ucpv	600Vdc	800Vdc	1000Vdc	1200Vdc	1500Vdc
Nominal Discharge Current(8/20μs)	In	20kA
Maximum Discharge Current(8/20μs)	Imax	50kA
Lightning Impulse Current(10/350μs)	limp	12.5kA	12.5kA	9kA	6.25kA	6.25kA
Total discharge current for multipole SPD(10/350μs)	Itotal	25kA	25kA	18kA	12.5kA	12.5kA
Voltage Protection Level	Up	≤2.6kV	≤3.2kV	≤3.8kV	≤4.5kV	≤5.2kV
Response Time	tA	≤25ns
Short-circuit current rating	Iscpv	10A

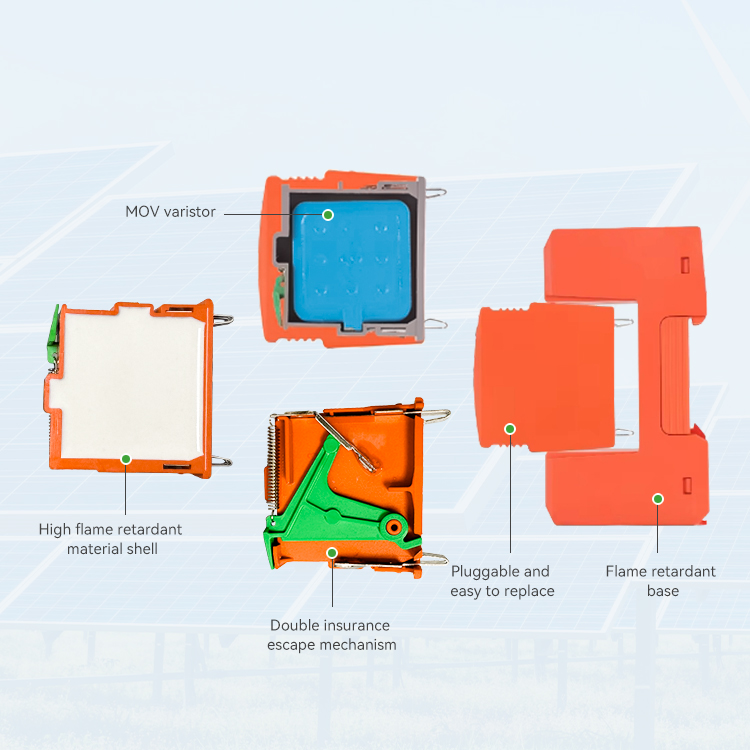

heat tripping device	insertion
Max. Backup Fuse	125A~160A gPV FUSE
Mechanical properties
Product size		see the photo as below
Wiring method		screw terminal 2.5-25mm²
Normal/Fault display		green/red
Maximum remote signal load voltage/current		250V/0.5A[AC],30V/3A[DC]
Maximum cross-sectional area of remote signal connection line		1.5mm2
Installation		35mm DIN Rail
Operating Temperature range	Tu	-40-+85°
Protection level		IP20
Enclosure material		Thermoplastic material, compliant with UL94-V0
