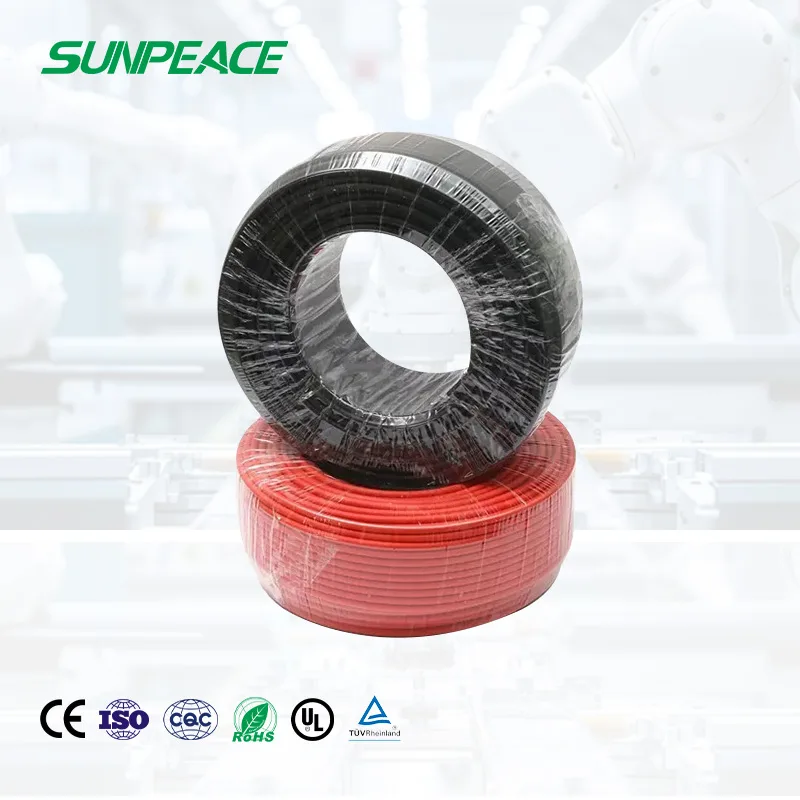

62930 IEC 131 PV Cable Wire Tinned Copper Solar DC Cable
Product name：solar pv cable
Type：solar cable
Application：Power Station
Ambient temperature：-40℃-+90℃
Warranty：5 years
Category：Product, Solar Cable
Product Details
| Product Name | DC Solar PV Cable |
| Origin | China |
| Color | Black and Red or Customized |
| Specification | 2.5mm2, 4.0mm2, 6.0mm2, 10.0mm2 |
| Number of Cores | Twins Core |
| Transport Package | Drum or Roll |

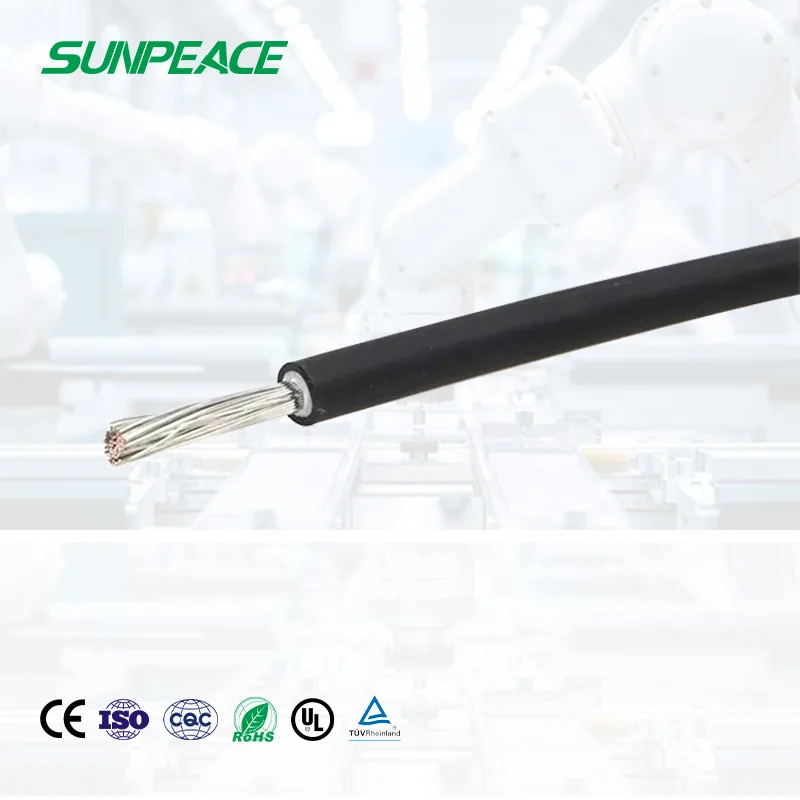

| Conductor | Oxygen-free Tinned Copper Wire |
| Insulating Layer | 125℃XLPO |
| Sheath Layer | 125℃ XLPO |
| Special Process | irradiated Cross-linked |
| Rated Voltage | AC:Uo/U=1.0/1.0KV DC:1.5KV |
| Voltage Test On Completed Cable | AC:6.5 KV/ 5min,DC:15 KV/5min |
| Ambient Temperature | -40℃~+90℃ |
| Max Conductor Temperature | +120℃ |
| Service Life | >25 Years(-40℃~+90℃) |
| Bending Radius | ≥4×D (D<8mm),≥6×D (D≥8mm) |
| Cold bending test | EN60811-504 |
| Damp Heat Test | EN60068-2-78 |
| Weathering/UV-resistance | IEC 62930 |
| Ozone resistance | EN60811-403 |
| Ageing properties | EN60811-401 |
| Smoke density | IEC61034-2 |
| Test under fire condition | EN60332-1-2 |
| Thermal endurance properties | IEC60216-1 |
| Resistance against acid and alkaline solution | EN60811-404 |
| Cross Section | Conductor construction | Conductor Stranded | Cable OD | Conductor Dc Resistance | Current carring Capacity | Picking |
| mm² | Φn/mm±0.015 | Φmm±0.02 | Φmm±0.2 | Ω/km | AT 60ºC(A) | mater/roll |
| 2×2.5 | 36×0.285 | 2.0 | 5.1×10.5 | 8.21 | 36 | 100/100 |
| 2×4.0 | 56×0.285 | 2.4 | 5.5×11.5 | 5.09 | 44 | 100/100 |
| 2×6.0 | 84×0.285 | 3.0 | 6.5×13.6 | 3.39 | 60 | 100/100 |
| 2×10 | 80×0.39 | 4.0 | 7.5×15.4 | 1.95 | 82 | 100/100 |
