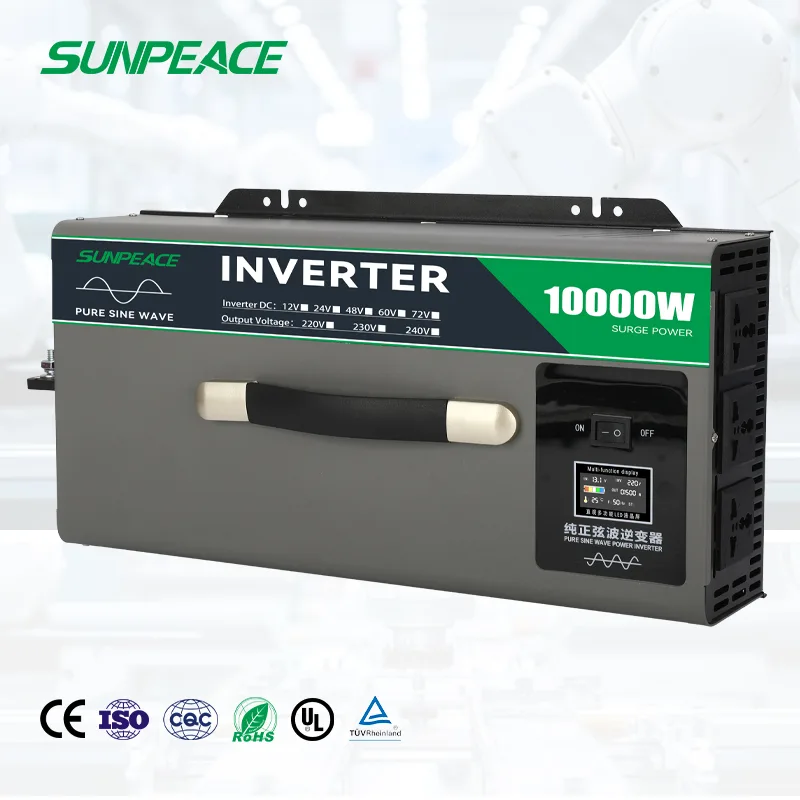

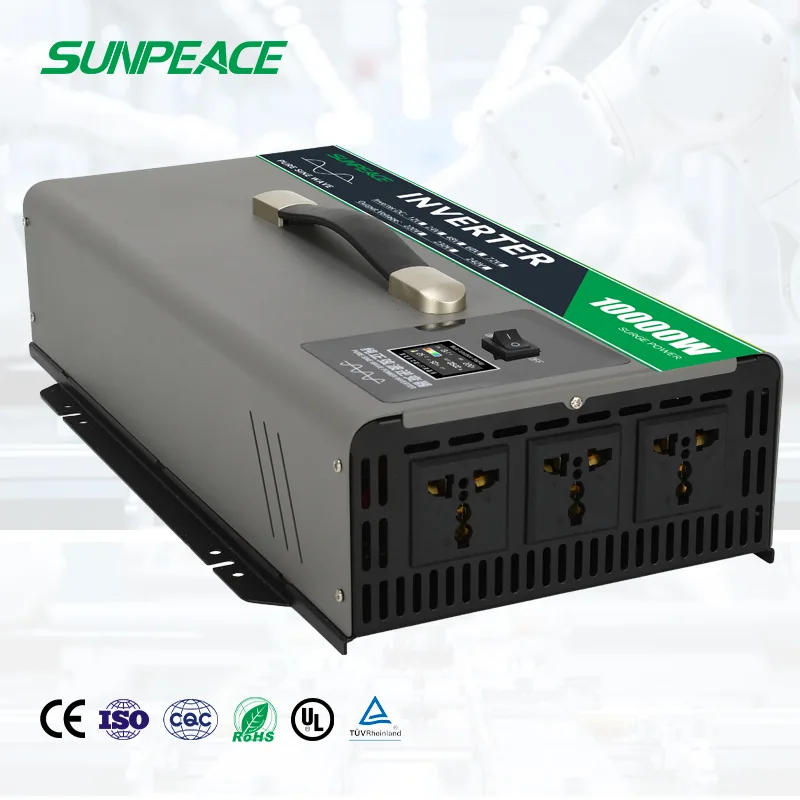

Solar Inverter

Performance

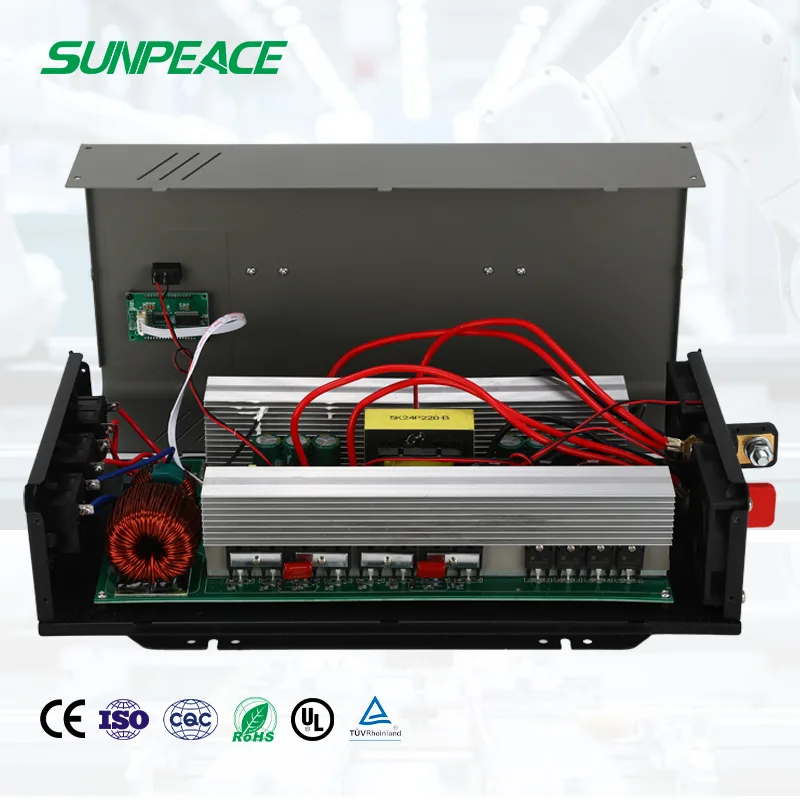

An inverter is a power supply that converts direct current (from batteries, solar cells, wind turbines, etc) to alternatingcurrent. Due to the high frequency inverters used in power conversion technology, ferrite transformers are replacingtraditional bulky silicon steel transformers. This is why our company’s inverters are lighter and less bulky than otherinverters with similar power ratings. During the inverting mode, the inverter actually outputs a pure sine wave, which isthe same as the public power supply. As long as the power of your appliances does not exceed the power ofthe inverter,you can basically.

Model		ZT5000W-24V	ZT5000W-48V	ZT5000W-60V
output power	5000W
peak power	10000W
Input voltage (range)		DC24V（19-32V）	DC48V（38-62V）	DC60V（47.5-77.5V）
Output Voltage (Single Selection)	（220VAC/230VAC/240VAC）±5%
no-load current		0.7A	0.4A	0.313A
output frequency	50Hz or 60Hz
output waveform	pure sine wave
Output efficiency is the highest.		88%	90%	91%
undervoltage protection	First, call the police (the alarm sound lasts for four seconds), the LED red light flashes, and the voltage continues to drop and the power is cut off (displaying LU)
overvoltage protection	Alarm (alarm sound is three beeps) LED red light flashes, power off (OU)
overload protection	Alarm (alarm sound is two beeps), LED red flashes, power off (OL)
over-temperature protection	First, call the police (the alarm sounds for five times). The temperature continues to rise and the LED red light flashes and then turns off (OH)
short-circuit protection	It has short-circuit protection without disrupting the circuit (displayed as SC)
Reverse connection protection	blown fuse
Under-voltage alarm range		21±0.1V	42±0.1V	52.5±0.1V
Under-voltage protection range		19±0.1V	38±0.1V	47.5±0.1V
Overvoltage protection range		32±0.1V	62±0.1V	77.5±0.1V
Under-voltage recovery range		26±0.1V	52±0.1V	65±0.1V
Overvoltage recovery range		30V±0.1V	60V±0.1V	75±0.1V
operating ambient temperature	-20°- +50°
Product dimensions (mm)	437*225*103
Installation dimensions (mm)	200*207
Label size (mm)	284*50
Packaging dimensions (mm)	515*295*178
Net weight / Gross weight (kg)	4.8/5.8
quality guarantee	24 months
accessories		10 square * 4	Electric vehicle wiring + 10 square wires * 2	Electric vehicle wiring + 10 square wires * 2
type of cooling	Intelligent air-cooling (temperature + power)
