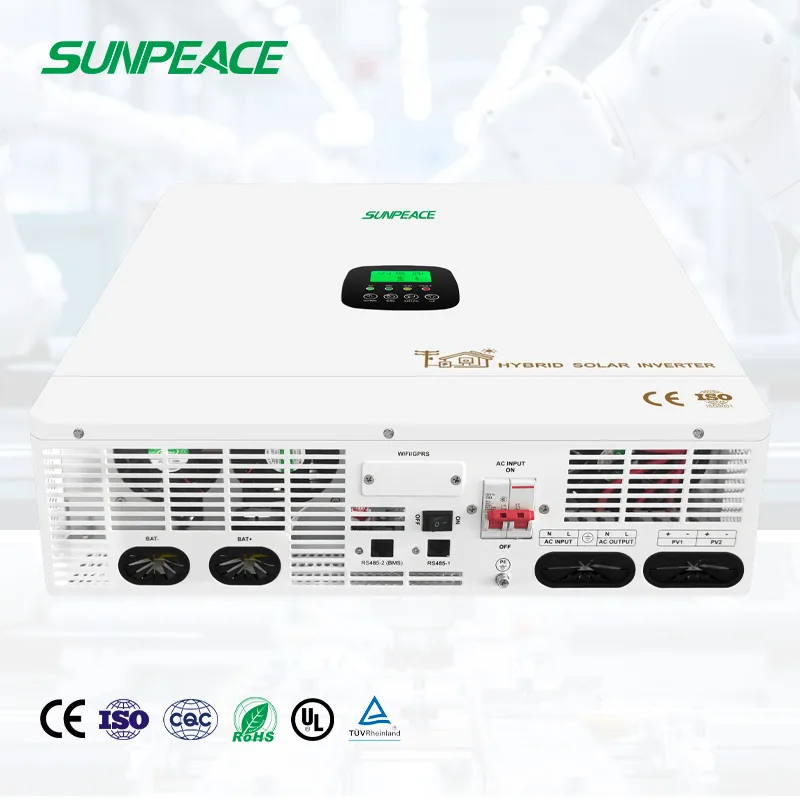

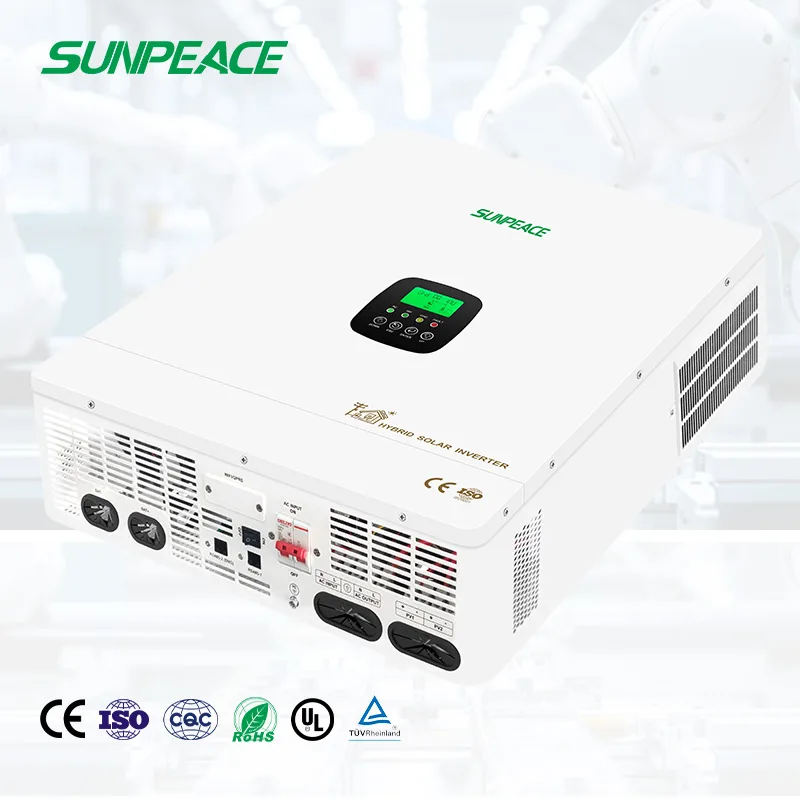

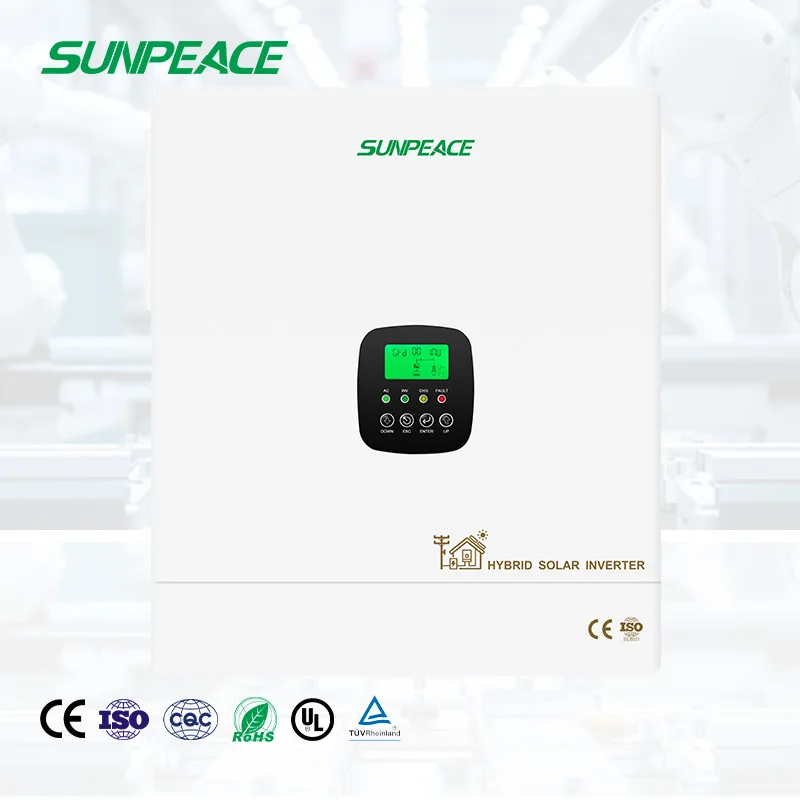

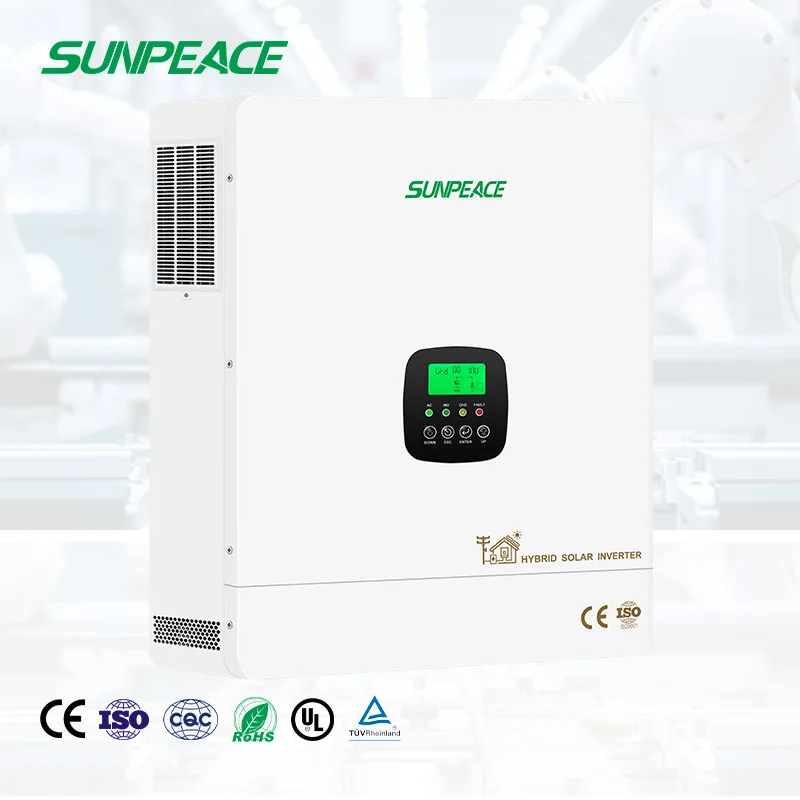

12.3KW ON OFF Grid MPPT Solar Hybrid Inverter for Photovoltaic PV/Solar System
Product Name: Solar Inverter
Protection Degree: IP 20
Degree Class: Class I
Rated Power:12.3kW
AC Input: 230VAC,1Φ,50Hz,91.3Amax
GRID/ACOutput:230VAC,1,50Hz,53.5A
Protection Degree: IP 20
Degree Class: Class I
Rated Power:12.3kW
AC Input: 230VAC,1Φ,50Hz,91.3Amax
GRID/ACOutput:230VAC,1,50Hz,53.5A
Category：Solar Inverter
Product Details
Features:
* High-frequency inverter with high efficiency and lightweight design.
* Output power factor PF=1 for optimal energy utilization.
* Supports lithium battery activation/wake-up startup functionality.
* Parallel expansion capability – up to 9 units can operate simultaneously.
* Real-time display of actual load power, significantly enhancing user awareness.
* Pure sine wave output compatible with diverse loads.
* Output short-circuit protection for enhanced safety.
* Customizable parameters adjustable based on user requirements.
| Product Name | Solar Inverter |
| Protection Degree | IP 20 |
| Degree Class | Class I |
| Rated Power | 12.3kW |
| AC Input | 230VAC,1Φ,50Hz,91.3Amax |
| GRID/AC Out put | 230VAC,1,50Hz,53.5A |
| Battery Parameter | |
| DC Input | 48VDC,284.7.4A |
| Max.AC Charging Current | 140A |
| Max.PV Charging Current | 200A |
| Max.Charging Current | 200A |
| PV Input Parameter | |
| Max. PV Input Power | 6000W*2 |
| Max. PV Input Voltage(Voc) | 500VDC |
| Max.PV Input Current | 27A*2 |
| MPPT Tracking Range | 80~450VDC |
| Rated PV Input Voltage | 360VDC |
| Number of MPPT | 2 |
